Bluetooth 5.0

Seamless Bluetooth
pairing for high-volume
music playback.

Technical Specifications

Processor
High-Performance ARM Cortex-R5
Memory
4MB RAM + 4MB FLASH (Extensible, up to 16MB)
Communication
4G-CAT1 Full-Network Compatibility + Bluetooth
2G-GPRS (able to be customized)
Wi-Fi: 2.4G (optional)
Bluetooth
>High-quality Bluetooth chip (AC6965A)
Speaker
4Ω 10W High-Power Speaker
100cm: > 105dB ± 3.0dBB0cm: > 110dB ± 3.0dB
Machine Color
Standard: White (Custom Colors Available)
Interfaces
1 x Type-C Port
1 x Nano-SIM Card Slot (Optional)
Power Supply
Supports 5V 1A/2A Power Adapter Input
Voice Broadcast
Preloaded Voice Files
Supports TTS Expansion & Online Conversion
Compatible with WAV, MP3. AMR Formats
Battery
2000mAh/ 4000mAh Options
Buttons
Adjustment Button: Volume Control / Page Flip
1 x Power Button
1 x Function Button
Customizable Multi-Function Button Combinations
Display Screen
High-Performance Screen for Transaction
Amount, Numbers, Time, and Symbols
Screen Size: 58mm x15mm
Expandable Features

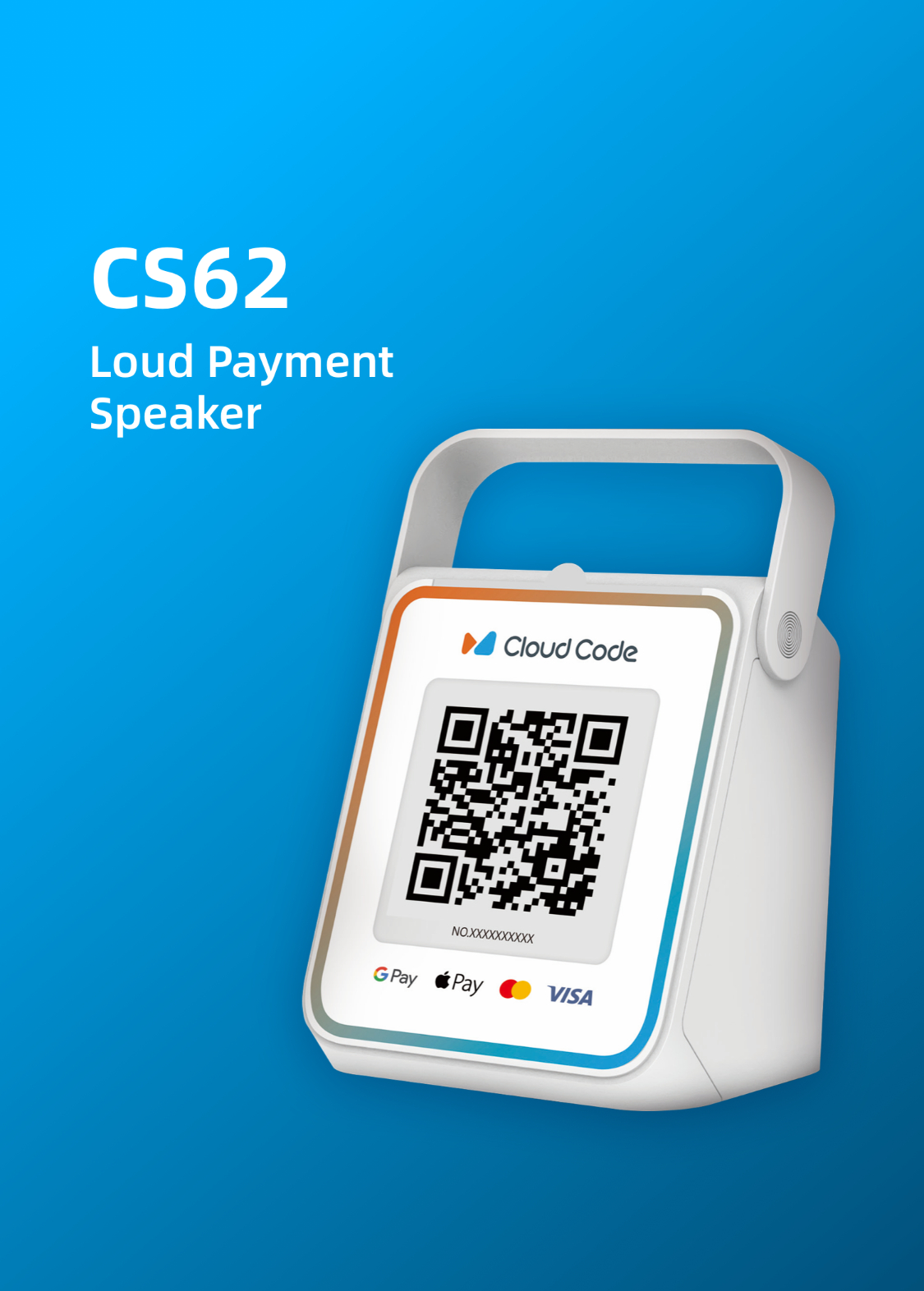

Cloud Soundbox

CS62

More Than a Soundbox

CS56

Product
Parameters

Processor
High-Performance ARM Cortex-R5
Memory
4MB RAM + 4MB FLASH (Extensible, up to 16MB)
Display Screen
High-Performance Screen for Transaction
Amount, Numbers, Time, and Symbols
Screen Size: 58mm x15mm
Expandable Features
Communication
4G-CAT1 Full-Network Compatibility + Bluetooth
2G-GPRS (able to be customized)
Wi-Fi: 2.4G (optional)
Bluetooth
High-quality Bluetooth chip (AC6965A)
Speaker
4Ω 10W High-Power Speaker
100cm: > 105dB ± 3.0dBB0cm: > 110dB ± 3.0dB
Buttons
Adjustment Button: Volume Control / Page Flip
1 x Power Button
1 x Function Button
Customizable Multi-Function Button Combinations
Machine Color
Standard: White (Custom Colors Available)
Interfaces
1 x Type-C Port
1 x Nano-SIM Card Slot (Optional)
Power Supply
Supports 5V 1A/2A Power Adapter Input
Voice Broadcast
Preloaded Voice Files
Supports TTS Expansion & Online Conversion
Compatible with WAV, MP3. AMR Formats
Battery
2000mAh/ 4000mAh Options
